Metalworking / Pressing

GREAT EXPERIENCE IN PRESSING.

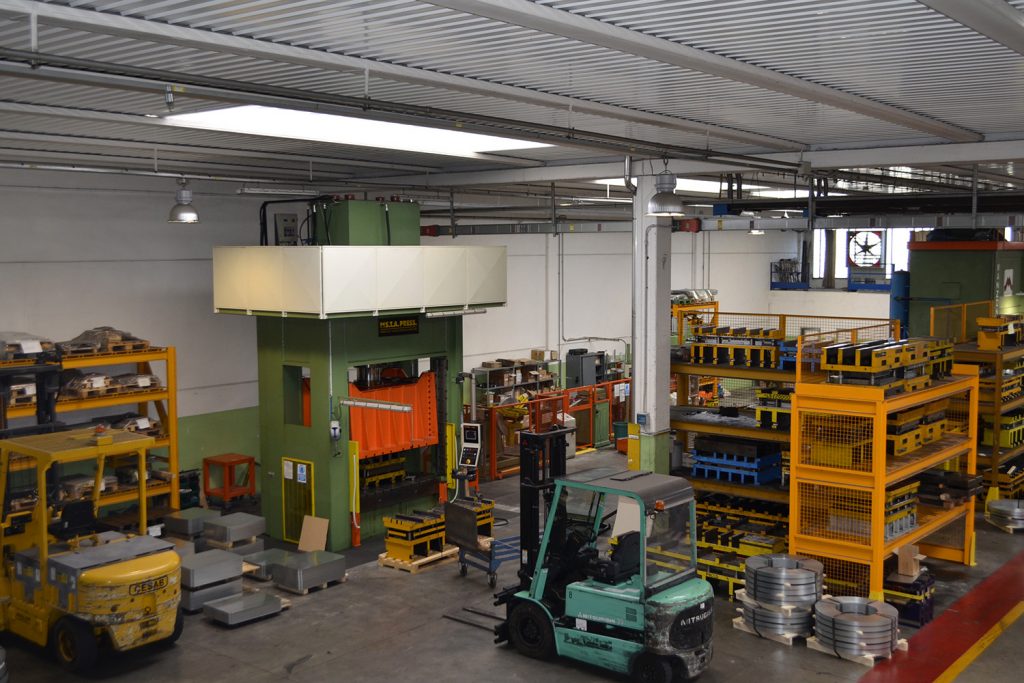

The Pressing Department is equipped with the following units:

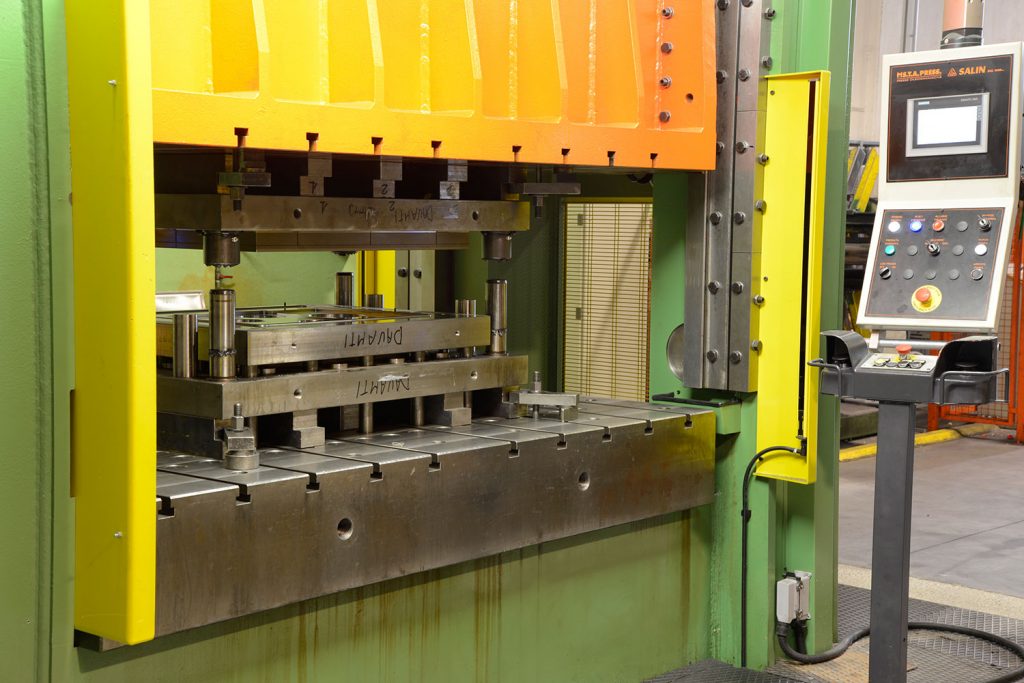

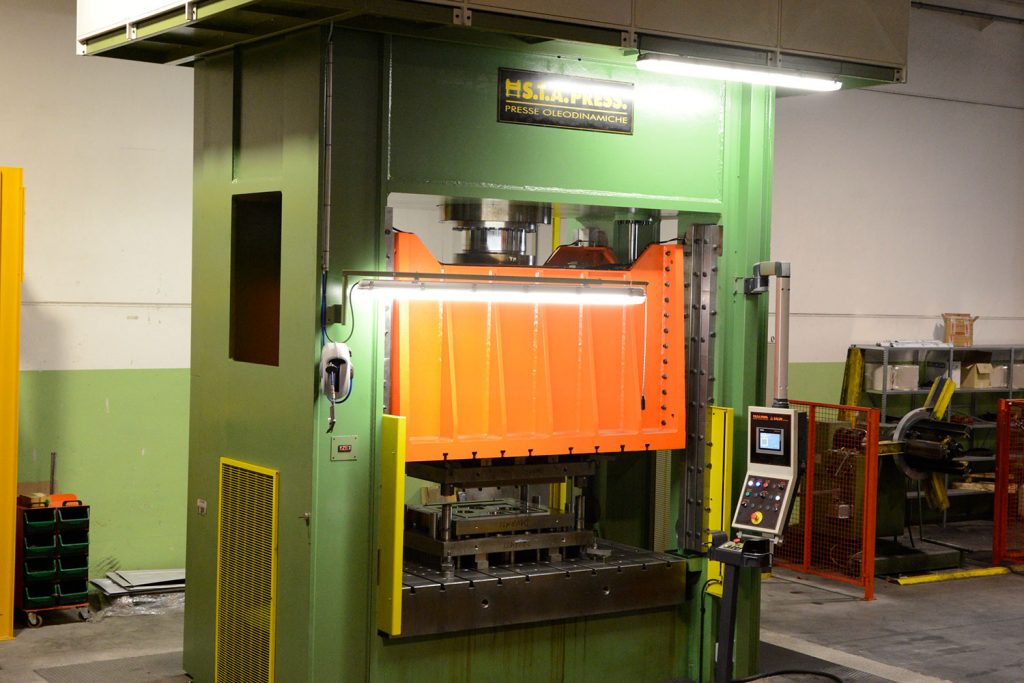

• S.T.A. PRESS MOULDING THROUGH DEEP DRAWING WITH A 500 TONS. HYDRAULIC PRESS

Hydraulic press 500 tons. for surface of 1500×2400, which is suited to the realization of details drawn as deeply as 200 mm. The most powerful of our machines a combination of strength and precision.

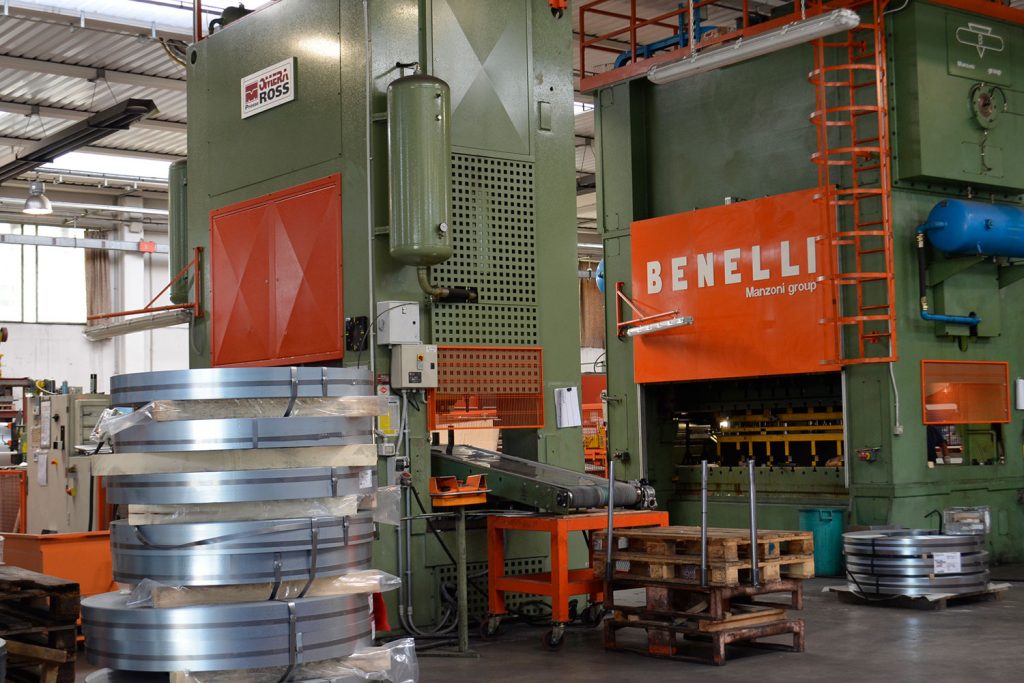

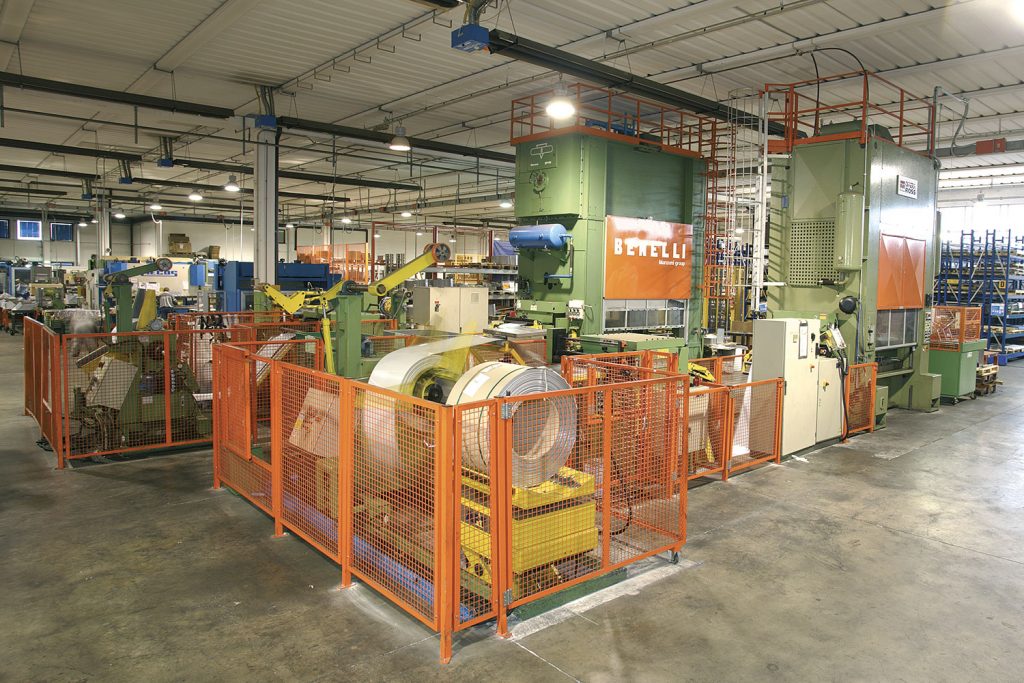

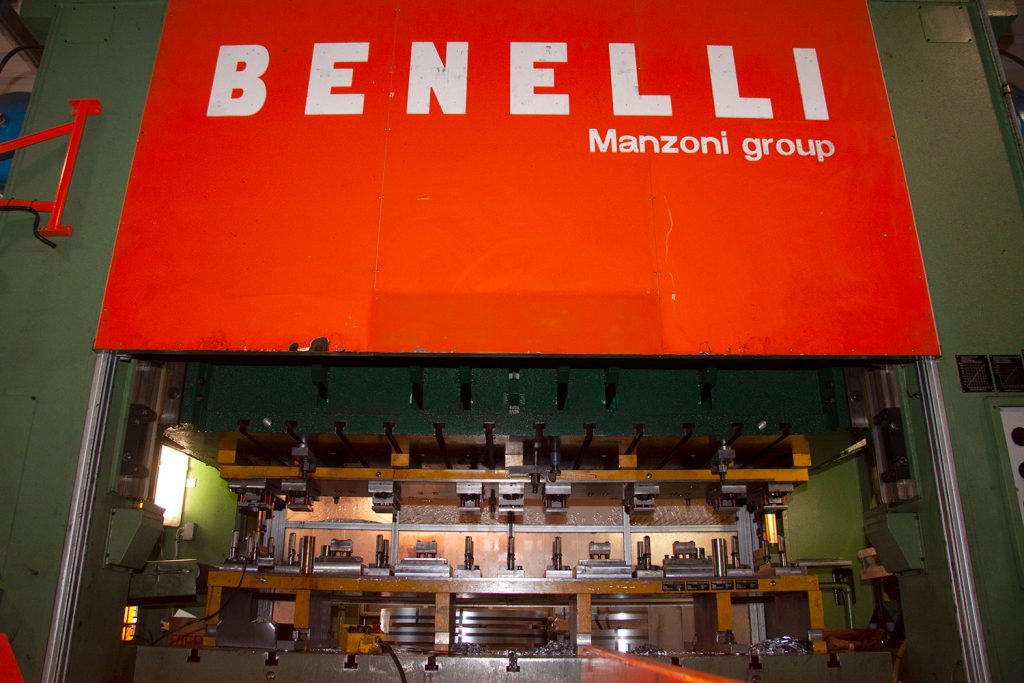

• BENNELLI 315 tons.  2-COLUMN PRESS

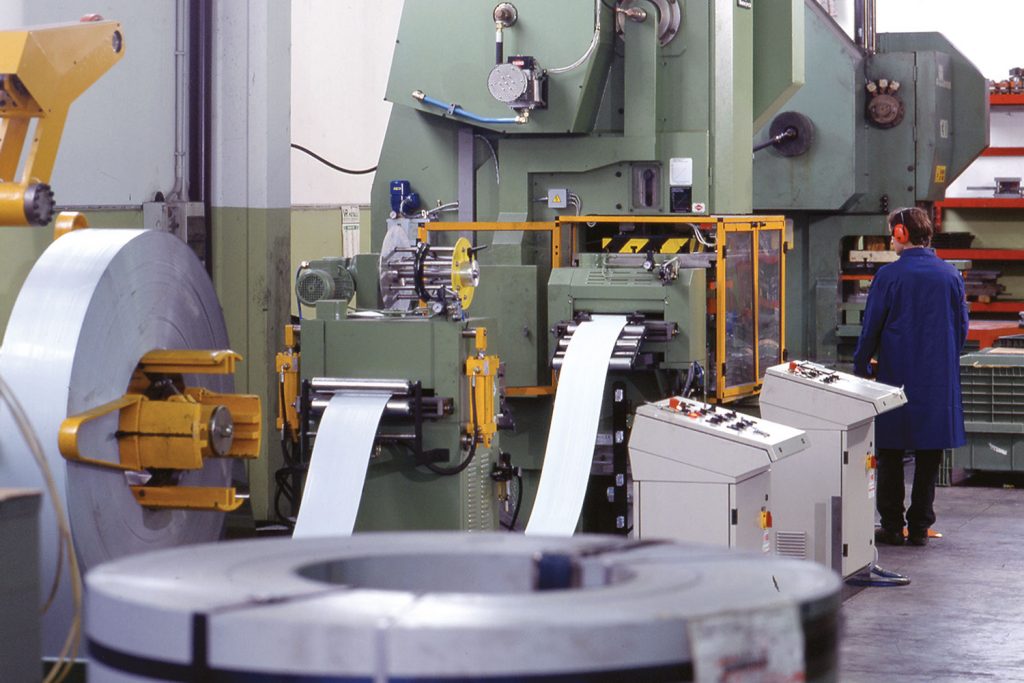

with 1250 x 2850 mm table. 50 q capacity reel with electronic Norda feeds. Maximum 1000 mm in width. Thicknesses from 4/10 to 15/10.

Slide height P.M.S. all high 700 mm – P.M.I. all low 600 mm.

Tape entry height into the mold min 300 – max 350



• MANZONI 250 tons. 2-COLUMN

PRESS

with 1250 x 2000 mm table.

50 q capacity reel with COMPACT electronic feeds consisting of feeder + ALIX belt straightener. Maximum 800 mm in width. Thicknesses from 10/10 to 30/10.

Slide height P.M.S. all high 700 mm – P.M.I. all low 600 mm.

Tape entry height into the mold min 300 – max 350



• ROSS OMERA 315-Tons. 2-COLUMN PRESS

with 1250 x 2000 mm table.

40 q capacity reel with electronic Norda feeds.

Maximum 700 mm in width. Thicknesses from 5/10 to 15/10.

Slide height P.M.S. all high 700 mm – P.M.I. all low 600 mm.

Tape entry height into the mold .350



• MANZONI 200-Tons. ARCH PRESS

with 800 x 1500 mm table.

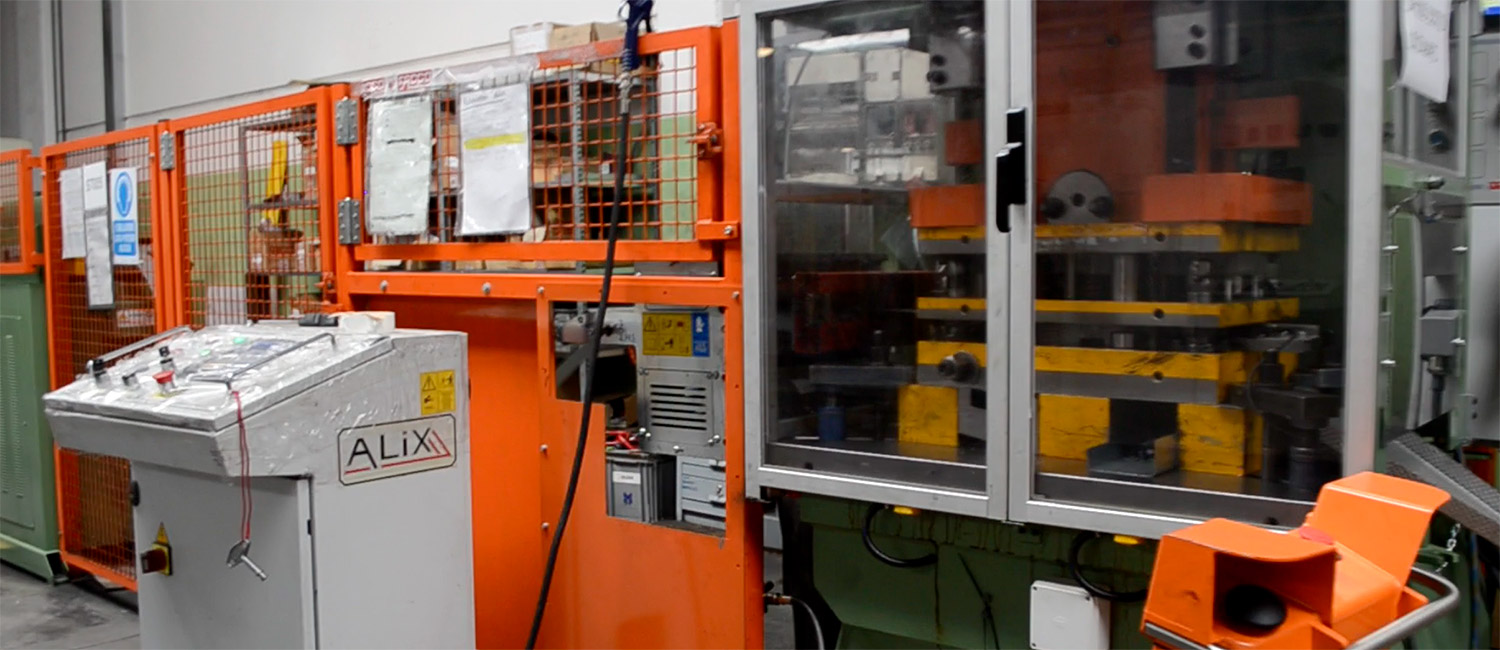

30 q capacity reel with electronic ALIX feeds.

Maximum 500 mm in width. Thicknesses from 4/10 to 15/10.

Slide height P.M.S. all high 450 mm – P.M.I. all low 370 mm.

Tape entry height into the mold min 200 – max 280



• ROSS 100-Tons. ARCH PRESS

with 620 x 860 mm table.

20 q capacity reel with electronic ALIX feeds.

Maximum 300 mm in width. Thicknesses from 5/10 to 15/10.

Slide height P.M.S. all high 350 mm – P.M.I. all low 300 mm.



• GALATO 160-TON ARCH PRESS for cold cut

with 800 x 1500 mm bench.



• ROSS 130-TON ARCH PRESS

with 600 x 1300 mm bench



• GALATO 50-TON ARCH PRESS
